Landa pgdc5 control box wire issues

gooch22garcia

New member
Can someone please help me I have I landa PGDC 5-3500 n I bought it not knowing someone had messed with the wires inside the box with thermostat. Can some please tell me how to wire the 12v relay(flow switch, thermostat, rectifier/ bridge, led, switch, circuit breaker , fuel solenoid) thanks!


milolieng

New member
Hello welcome. When I saw the topic, I said I will research it for you and I looked it up a bit. Where did you buy it? And they didn't give you an instruction manual when you got it? Believe me, I've read a few of his booklets that include such procedures. If you lost it, be sure to request it again. Respects...


gooch22garcia

New member

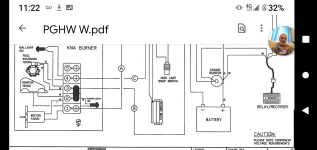

I've replaced 12v relay in control panel n I have a diagram that a hotsy rep sent me n I have it wired the way it says but still no electricity to the led


Hotwaterwizard

Hotsy Service Tech
All you are doing is shutting off the fuel when the flow stops or temp is to high start with the power to one side of the flow switch other side of it goes to c on the thermostat then p1 goes to one side of the fuel solenoid in series with eachother
